Greenwich Cantilever Awning
For the best of both worlds
This remarkable design brings together the refined aesthetic of our iconic Greenwich Awning® with the versatility of a cantilevered mechanism. Featuring the hallmark fabric-wrapped lath and decorative hardwood timber housing – customised to suit the client’s chosen finish – this evolution maintains the defining elements that have made the Greenwich Awning® a trusted choice for architects and designers alike.
Specifications
The Greenwich Awning
1: roller 2: cloth cover 3: Timber box 4: arm 5: lath 6: bracket 7: finial (optional) 8. Lath Head 9. Valance
Maximum width: 6.0m (larger width possible upon application) Maximum projection: 3.5m (subject to suitable fixing height, larger width possible upon application)
Housing Types
Wall Mounted
Arm Options
Folding-Arm
Front Elevation

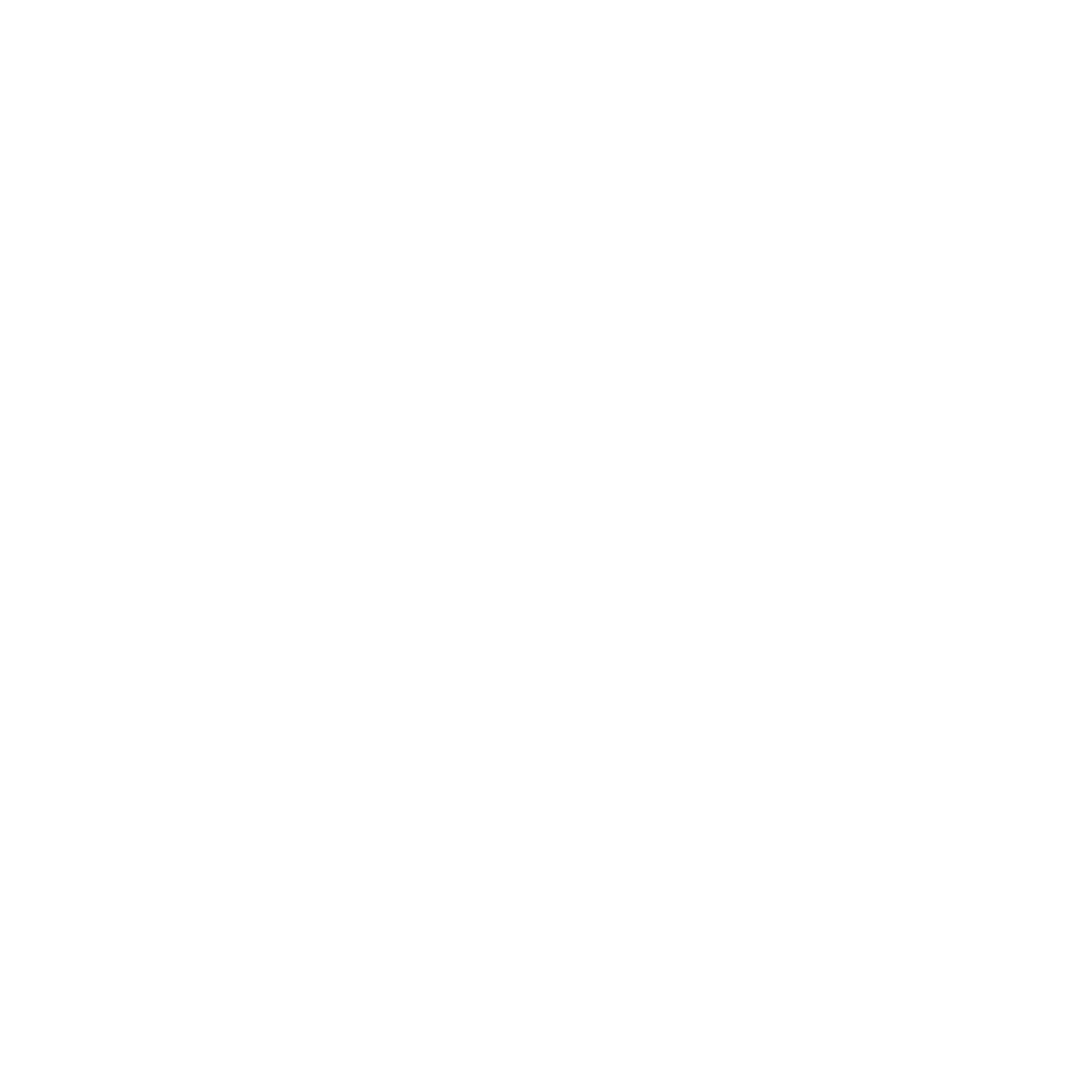

Cross Section
Minimum Pitch 10°, Maximum Pitch 35°
Bracket Options
Folding-Arm
Fixing Bracket 85 mm
Style Options
Operation Options
Manual Crank
Remote Operation
Finial Options
Acorn
Classic
Elliptical
Florette
Valance Options
Cross Section
Valance Styles
Straight
Turreted
Castle
Scalloped
Wave
Branding Options
Logo
Text
Full Pattern
Guilding
Optional Extras
Sun, wind & wain sensor
Vibration sensor
Finishes
Fabric Plain
We use the finest cloth. It is specially treated acrylic canvas that is Teflon coated to deal with the worst of the British weather. This secret process ensures that your awning is water-proof, rot-proof, shrink-proof and stain resistant with an additional anti-mildew treatment.
We also have a huge range of colours, as well as being able to match special colours.
Fabric Striped
Other combinations of colours also available.
Metalwork
All metal components are of the highest quality. We use stainless steel awning chain and our barrels are galvanised steel with high quality internal steel springs concealed inside. Arms are manufactured from high grade steel for extra strength. They are custom made for each individual application, tailored to follow the shape of the building upon which the awning will be installed.
There are over twenty metallic colour finishes for your metalwork.
Metalwork, non-standard finishes
Timber Colour

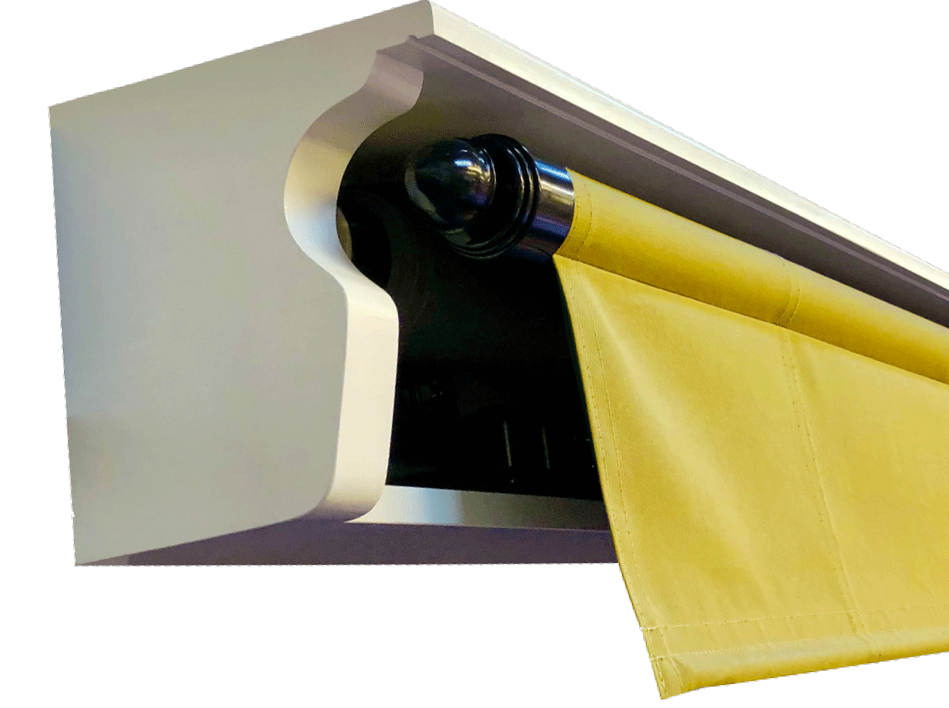

We always make the box that encases the cover and roller from solid timber not aluminium or steel replicas, which are common but inferior alternatives. We only use treated hardwood timber which resists warping and deteriorating. The box is given numerous coats of paint applied by hand to customers colour specifications. This is a selection of the most popular colours, please note, we are able to match any RAL colour.
Timber Stain
There is a choice of timber options including English, Jacobean and light oak, English and aged mahogany and Pacific cedar which can all be varnished to allow the natural grain to show.
